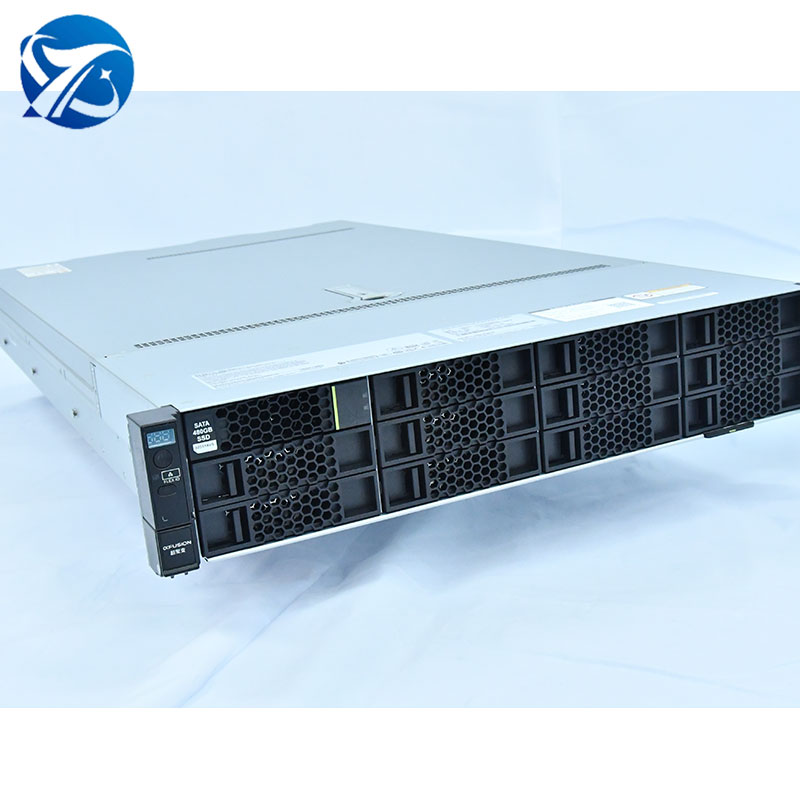

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.
| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
Supports various drive configurations (hot swappable): • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs • Dual M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; Optional supercapacitor for cache protection; RAID level migration, drive roaming, and remote web-based configuration. |
| Network | OCP 3.0 NICs supported. Two FlexIO card slots for network adapters. Hot swappable function supported. |
| PCIe Expansion | Max fourteen PCIe 4.0 slots: 1 dedicated for RAID, 2 FlexIO for OCP 3.0, and 11 standard PCIe 4.0 slots. |
| Management | iBMC chip with dedicated GE management port. Supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM. Optional FusionDirector software. |
| Power Supply | Two hot-swappable PSUs (1+1 redundancy): 900W/1500W/2000W/3000W Platinum or Titanium options available. |
| Dimensions | 86.1 mm x 447 mm x 790 mm (2U) |
