VortexAccel
VortexAccel
High-Performance Infrastructure for Cloud, Virtualization, and Big Data

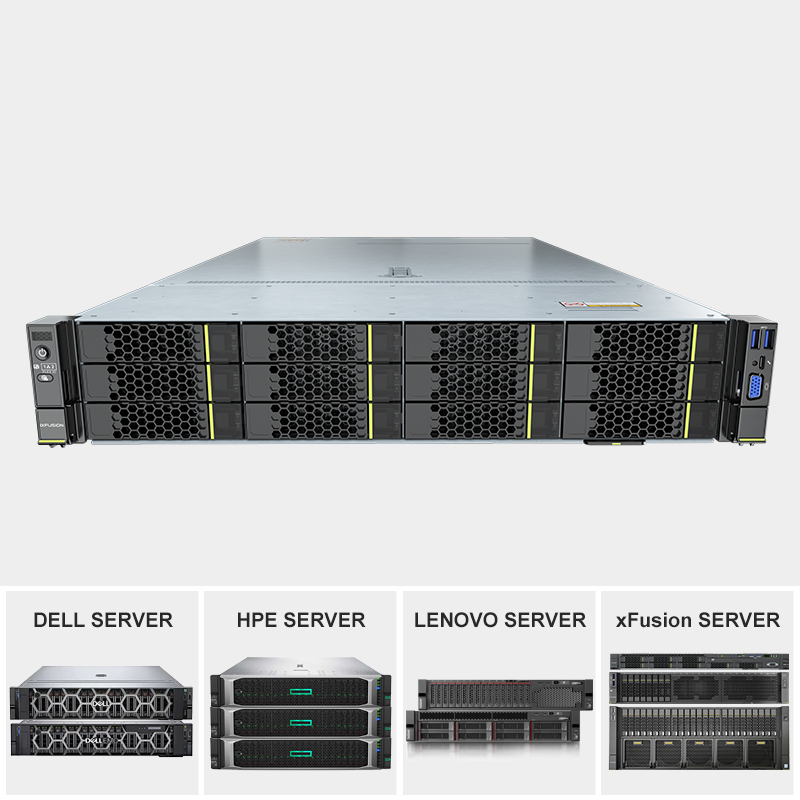

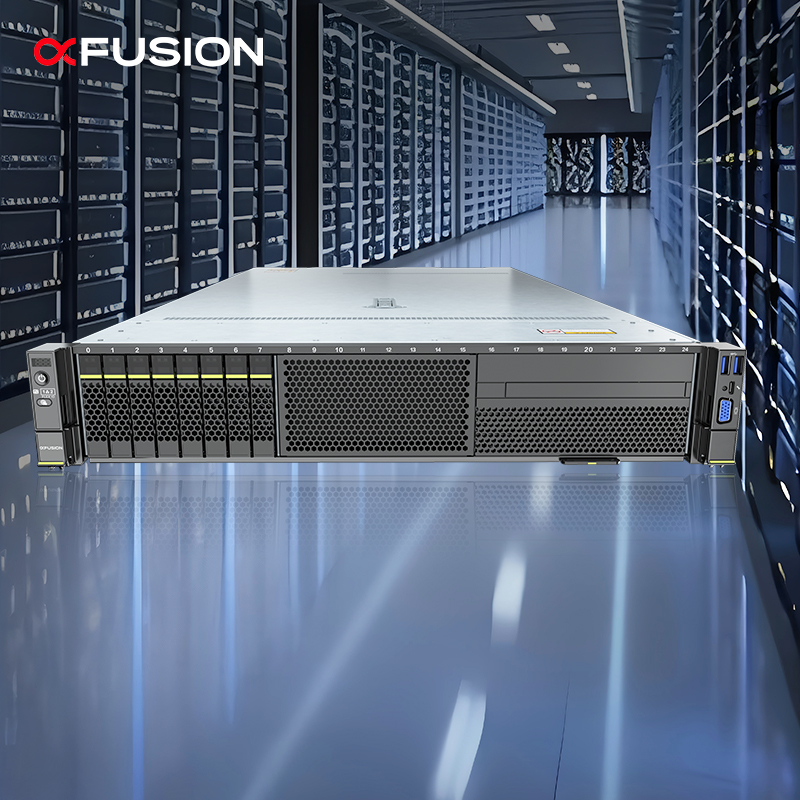

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, widely used for cloud computing, virtualization, database, and big data workloads. It can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.
It integrates patented technologies such as DEMT (intelligent power consumption management), FDM (intelligent fault management), and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.

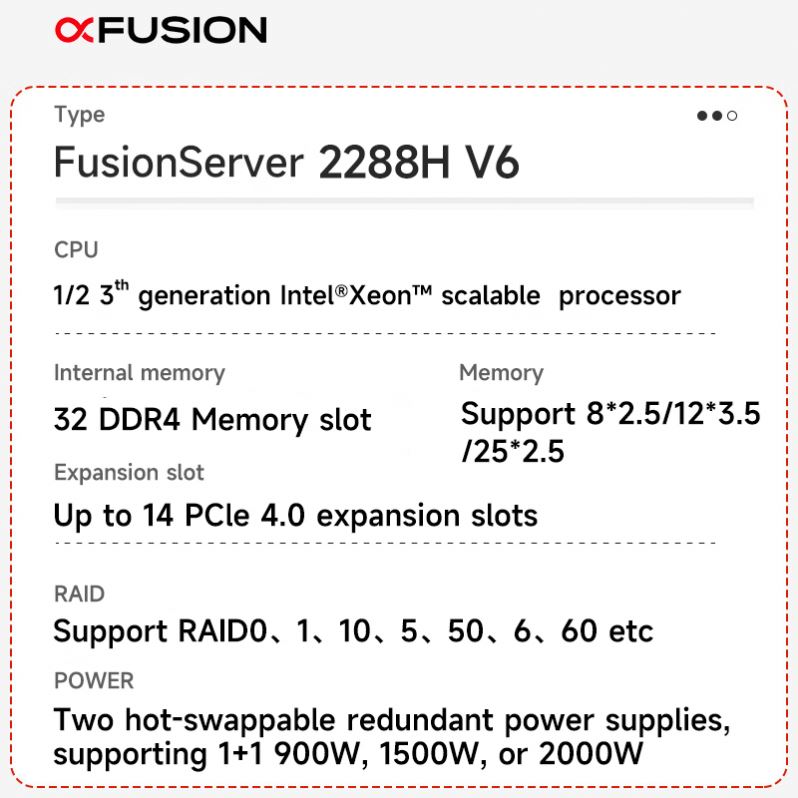

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: Dual M.2 SSDs |

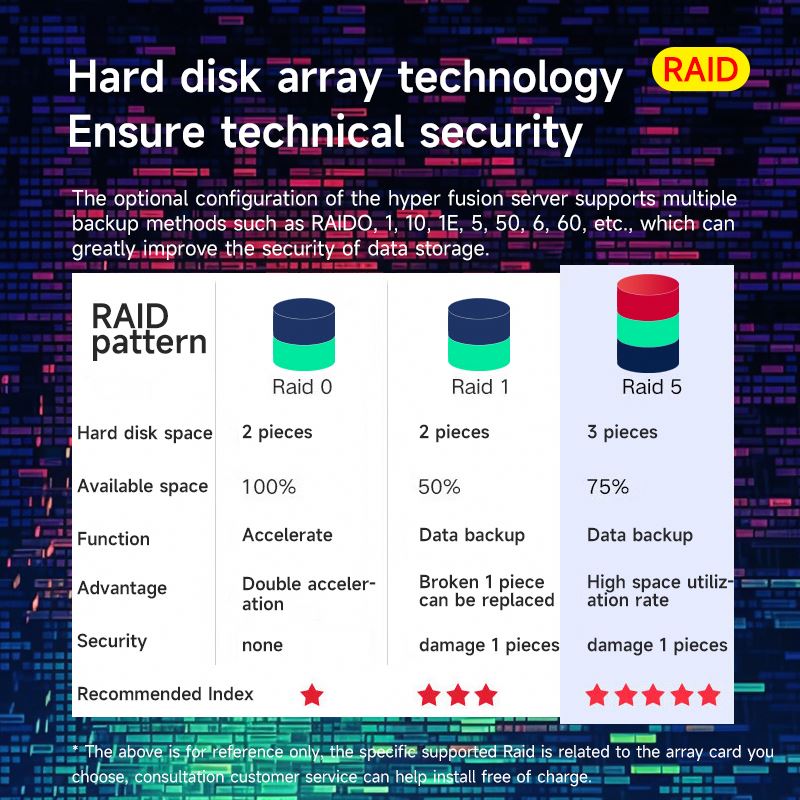

| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively. Hot swappable function supported. |
| PCIe Expansion | Maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards. |
| Chip Set | Intel C621A |
| Management | iBMC chip integrates one dedicated GE management port. Supports Redfish, SNMP, and IPMI 2.0; remote management UI based on HTML5/VNC KVM. Optional FusionDirector software for intelligent full lifecycle management. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Security Features | Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection. |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Operating Temp | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Power Supply |
Two hot-swappable PSUs in 1+1 redundancy mode: • 900 W AC Platinum/Titanium PSUs • 1500 W AC Platinum PSUs • 3000 W AC Titanium PSUs • 2000 W AC Platinum PSUs • 1200 W -48 V to -60 V DC PSUs |
As a leading integrated IT solutions provider, we combine cutting edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. We prioritize secure handling to ensure your infrastructure arrives in perfect condition.
