Product Display

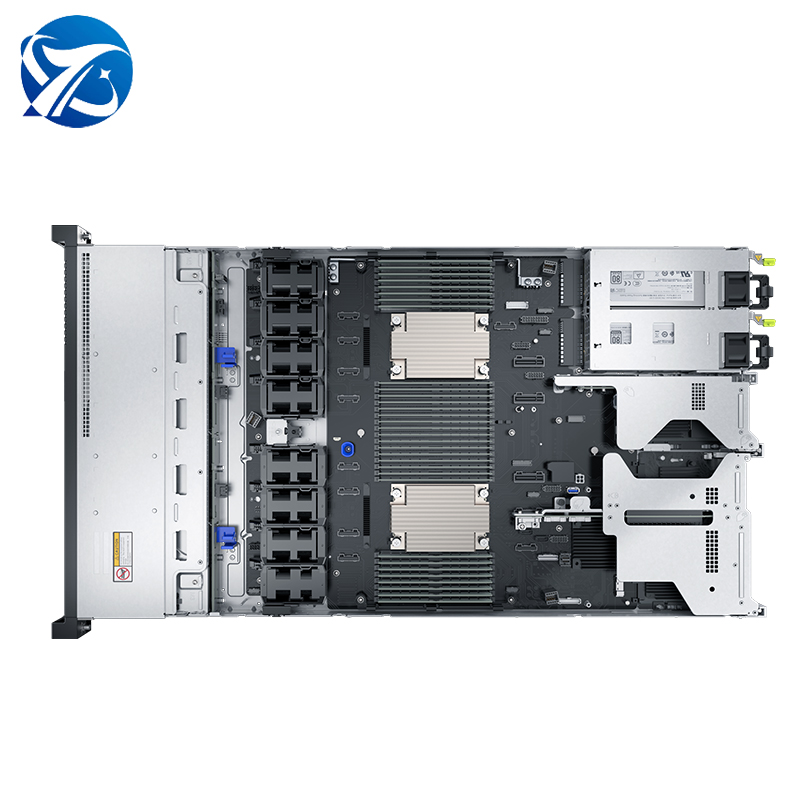

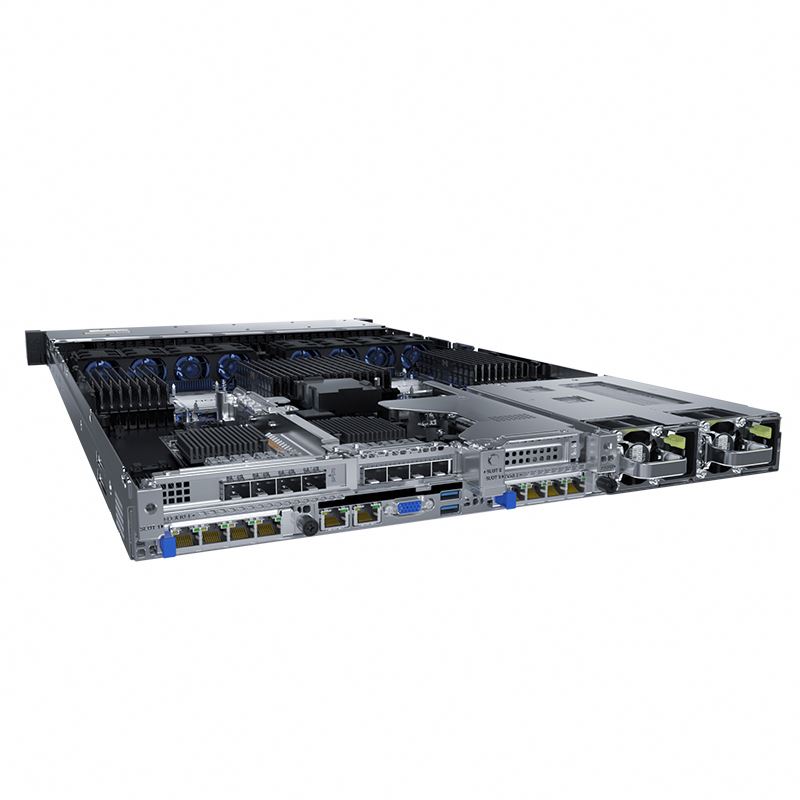

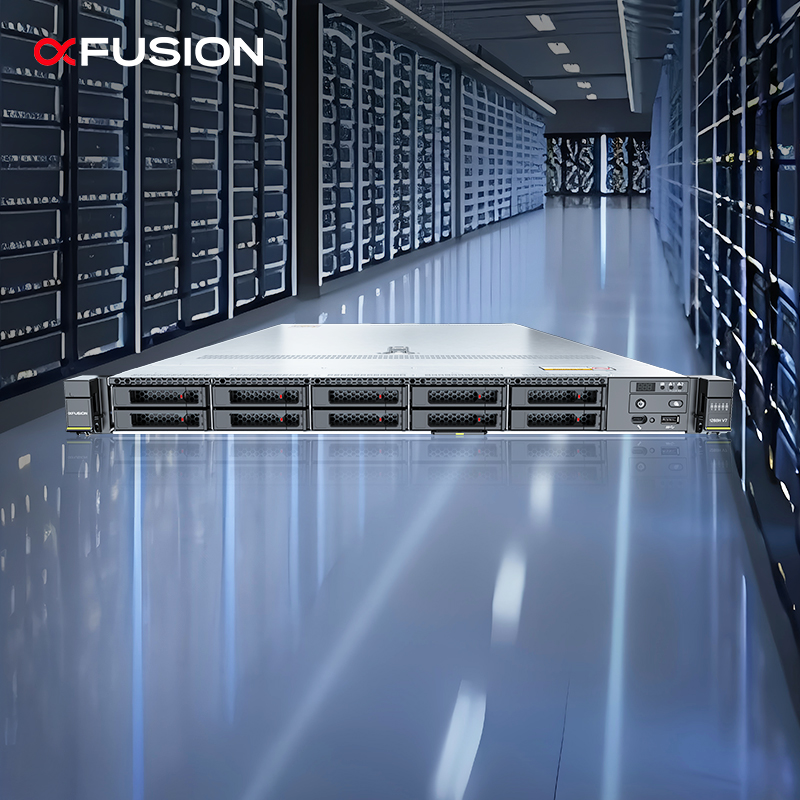

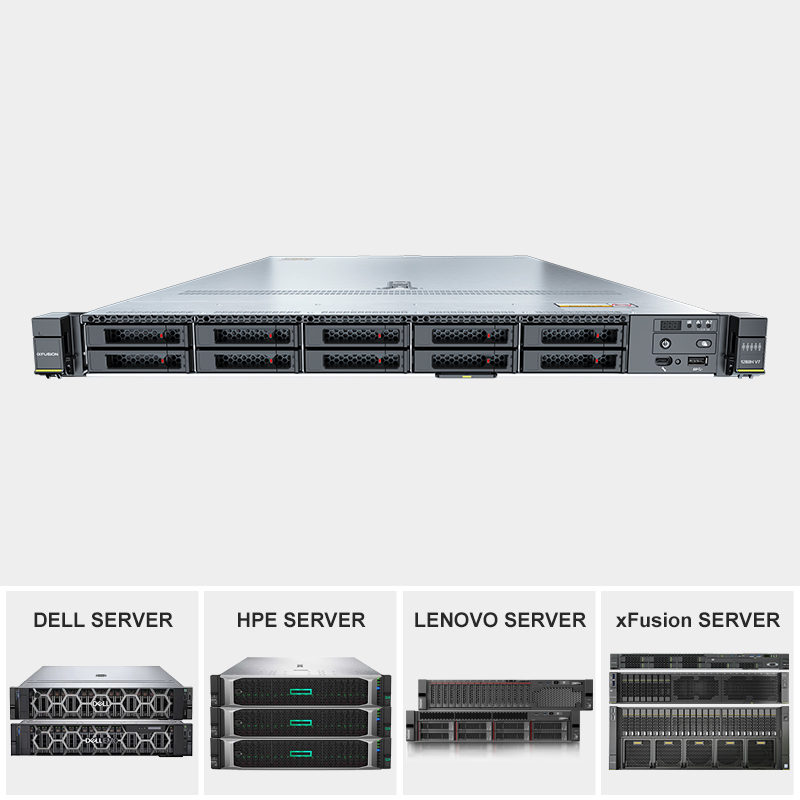

FusionServer 1288H V7 1U rack server
FusionServer 1288H V7 (hereinafter referred to as 1288H V7) is designed for the Internet, Internet Data Center (IDC), cloud computing, the enterprise market and telecom business applications have launched a new generation of 1U 2-socket rack servers with a wide range of applications. The 1288H V7 is suitable for IT core business, cloud computing, virtualization, scientific computing, enterprise or telecom business applications, and other complex workloads. The 1288H V7 has low energy consumption, strong expansion capabilities, high reliability, easy management, easy deployment and other advantages.
Product Description
Product Parameters
| Server Model |
FusionServer 1288H V7 |
| Form Factor |
1U Rack Server |
| Processors |
One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Drive bays |
Supports various drive configurations and hot swappable:
• 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less)
• 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less)
• 10 x 2.5-inch SAS/SATA/SSD drives
• 8 x 2.5-inch SAS/SATA/SSD drives
• 4 x 3.5-inch SAS/SATA/SSD drives
Supports flash storage:
• Dual M.2 SSDs
|
| RAM |
32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Storage controllers |
Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| I/O & Ports |
LOM: 2 x 10GE + 2 x GE ports |
| Rail |
Rail |
| Height X Width X Depth |
Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm
Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm
|
| Power Supply Units |
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs (1000 W input: 100 V to 127 V AC; 1500 W input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
• 2000 W AC Platinum PSUs (1800 W input: 200 V to 220 V AC, or 192 V to 200 V DC; 2000 W input: 220 V to 240 V AC, or 200 V to 288 V DC)
|
