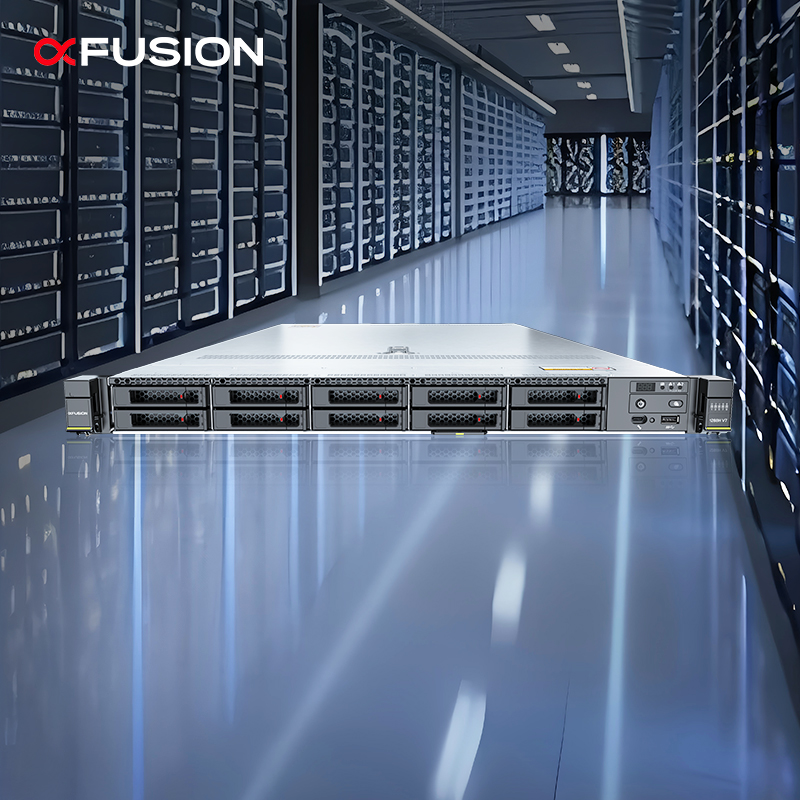

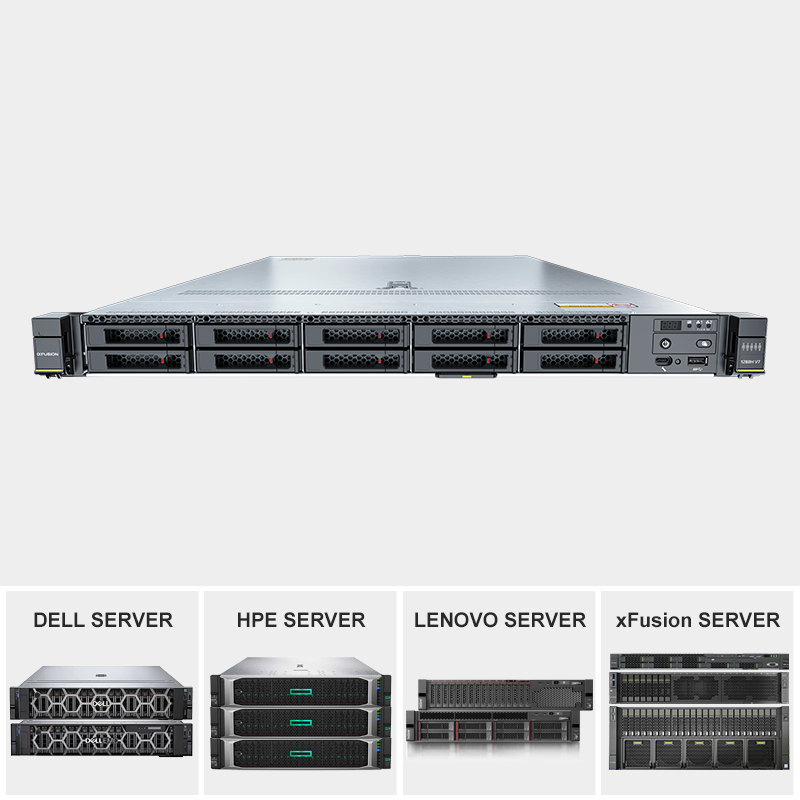

The FusionServer 1288H V7 is a new generation 1U 2-socket rack server designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise markets, and telecom business applications. It is ideally suited for IT core business, virtualization, scientific computing, and other complex workloads. The 1288H V7 features low energy consumption, strong expansion capabilities, high reliability, easy management, and rapid deployment.
| Server Model | FusionServer 1288H V7 |
|---|---|
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Drive Bays |
Supports hot swappable configurations: • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives • Flash: Dual M.2 SSDs |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Storage Controllers | Supports RAID 0, 1, 10, 5, 50, 6, or 60; optional supercapacitor for power failure protection; RAID level migration; drive roaming; self-diagnosis. |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Dimensions (H x W x D) | 43.5 mm x 447 mm x 790 mm (for both 3.5-inch and 2.5-inch chassis) |
| Power Supply Units |
• 900 W AC Platinum/Titanium • 1500 W AC Platinum (1000W at 110V / 1500W at 220V) • 1500 W 380 V HVDC • 1200 W -48 V to -60 V DC • 2000 W AC Platinum (1800W at 200V / 2000W at 220V) |
As a leading integrated IT solutions provider, we combine cutting-edge manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided to guarantee secure international transit.
